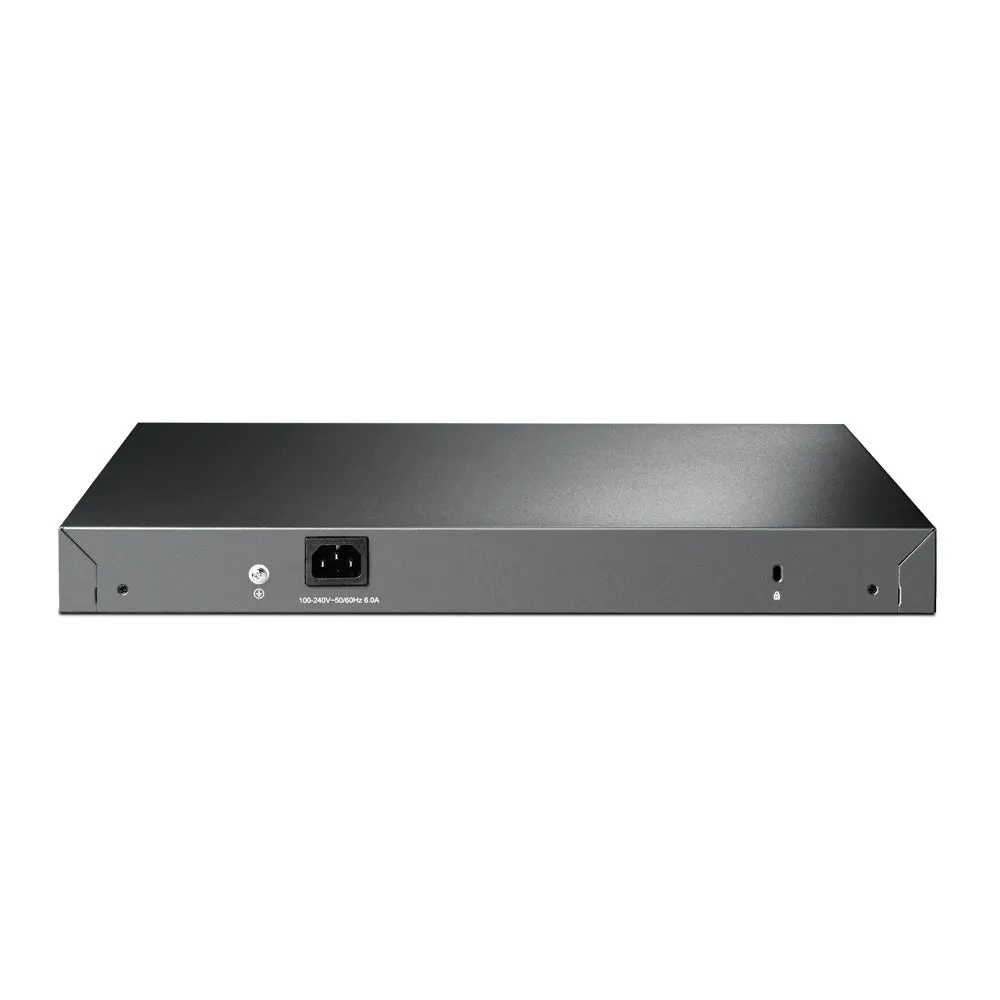

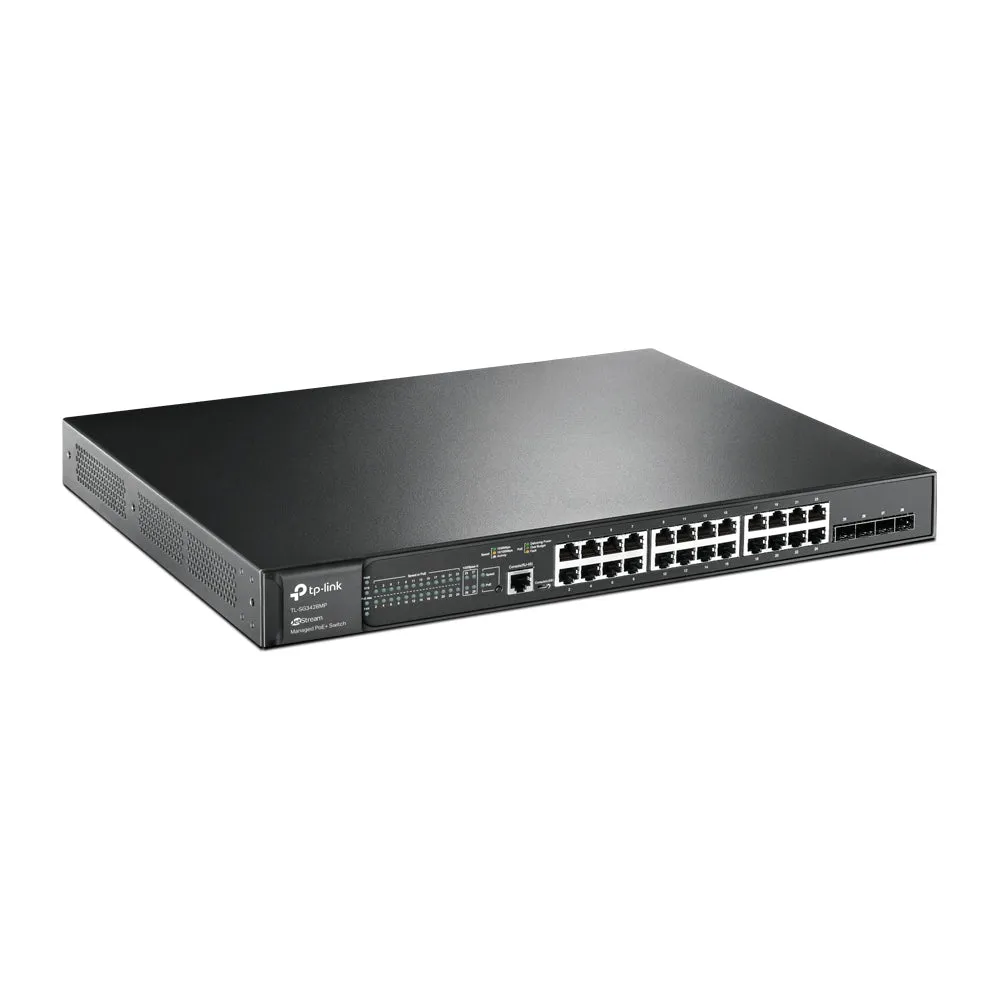

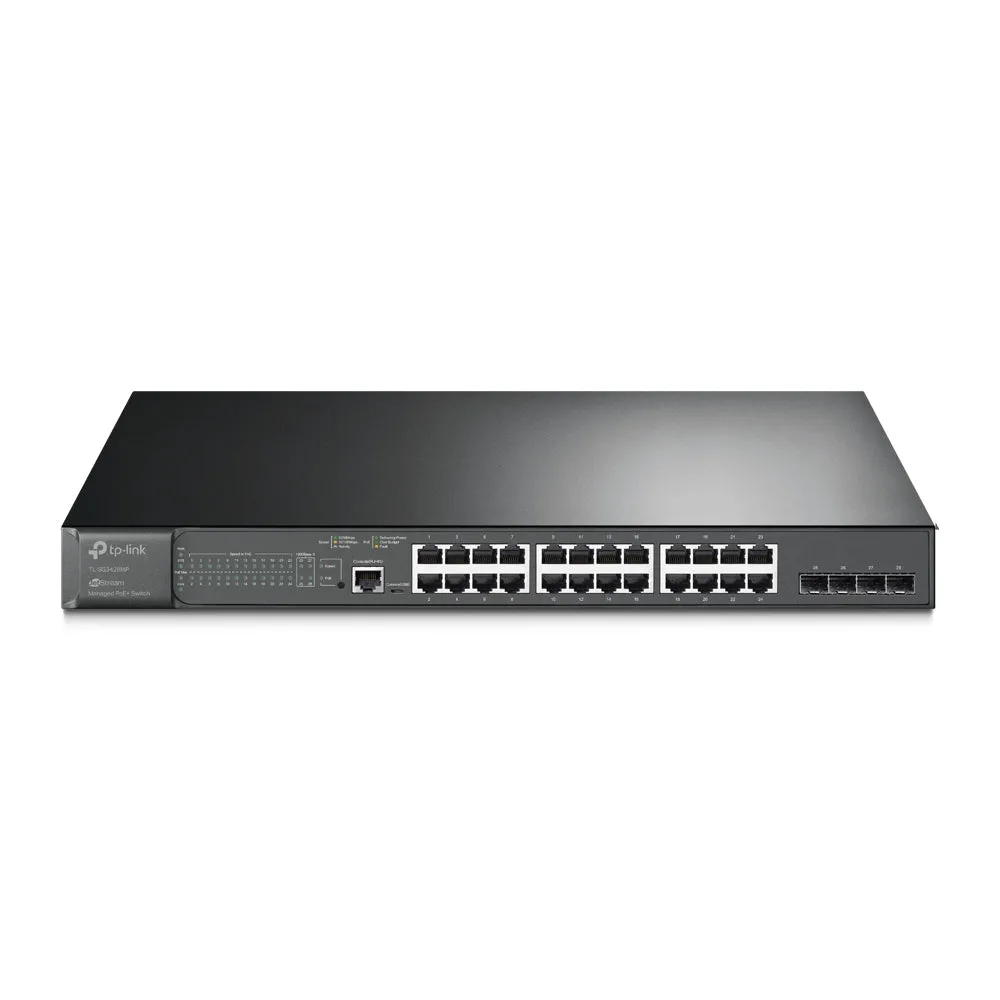

TP-LINK USA CORPORATION TL-SG3428MP JETSTREAM 28-PORT GIGABIT L2 MANAGED SWITCH

The TP-LINK TL-SG3428MP is a convenient Gigabit switch designed for a complete Omada network. It features 24 ports with Power over Ethernet (PoE ) capability, making it ideal for small businesses and reducing infrastructure costs.

The switch supports up to 384W total PoE power budget, allowing it to power PoE-supported devices such as wireless access points, IP cameras, and IP phones. This eliminates the need for separate power cables and simplifies deployment.

With its Software Defined Networking (SDN) platform, Omada provides centralized cloud management for network devices, including access points, switches, and gateways. It offers seamless wireless and wired connections, making it suitable for various environments such as hospitality, education, retail, offices, and more.

Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against network threats. Access Control Lists (ACL) restrict access to sensitive network resources, while 802.1X authentication ensures only valid user credentials can access the network.

Advanced QoS prioritizes voice and video traffic based on IP address, MAC address, TCP port number, UDP port number, and more. This ensures smooth performance even when bandwidth is limited.

The switch supports a wide range of L2 and L2 features, including VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. IGMP Snooping intelligently forwards multicast streams to appropriate subscribers, reducing unnecessary traffic.

Additional features include sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication, which are designed with service providers in mind. IPv6 support future-proofs your network without the need for hardware upgrades.

Management is easy through the web-based Graphical User Interface (GUI) or the Command Line Interface (CLI). Traffic is protected through SSL or SSH encryption. SNMP and RMON support enable the switch to provide valuable status information and send traps on abnormal events.

Specifications:

• Operating relative humidity (H-H): 10 - 90
• Storage temperature (T-T): -40 - 70
• Operating temperature (T-T): 0 - 45
• Storage relative humidity (H-H): 5 - 90
• Networking standards: IEEE 802.3af, IEEE 802.3at
• Jumbo frames support: Yes
• Power over Ethernet (PoE) ports quantity: 24
• Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
• Basic switching RJ-45 Ethernet ports quantity: 24
• Loop protection: Yes
• BPDU filtering/protection: Yes
• Authentication: MAC-based authentication, Port-based authentication
• ARP inspection: Yes
• Active link detection: Yes
• Power over Ethernet (PoE) power per port: 30
• SFP module slots quantity: 4
• Ethernet LAN data rates: 10,100,1000
• VLAN support: Yes
• Rack mounting: Yes
• LED indicators: Yes
• Quick start guide: Yes
• Number of fans: 2
• MAC address table: 8000
• Web-based management: Yes
• Switching capacity: 56
• Flow control support: Yes
• Power over Ethernet (PoE): Yes
• MAC address filtering: Yes
• Switch layer: L2/L2
• Quality of Service (QoS) support: Yes
• Port mirroring: Yes
• Link aggregation: Yes
• Multicast support: Yes
• Broadcast storm control: Yes
• Static port security: Yes
• Access Control List (ACL): Yes
• System event log: Yes
• Switch type: Managed
• Cloud-managed: Yes
• Configuring Location Settings (CLI): Yes
• Console port: RJ-45
• Product color: Black
• 10G support: No
• IP routing: Yes
• Rate limiting: Yes
• Spanning tree protocol: Yes
• Head-of-line (HOL) blocking: Yes
• Forwarding rate: 41.66
• DHCP features: DHCP client, DHCP server
• IGMP snooping: Yes
