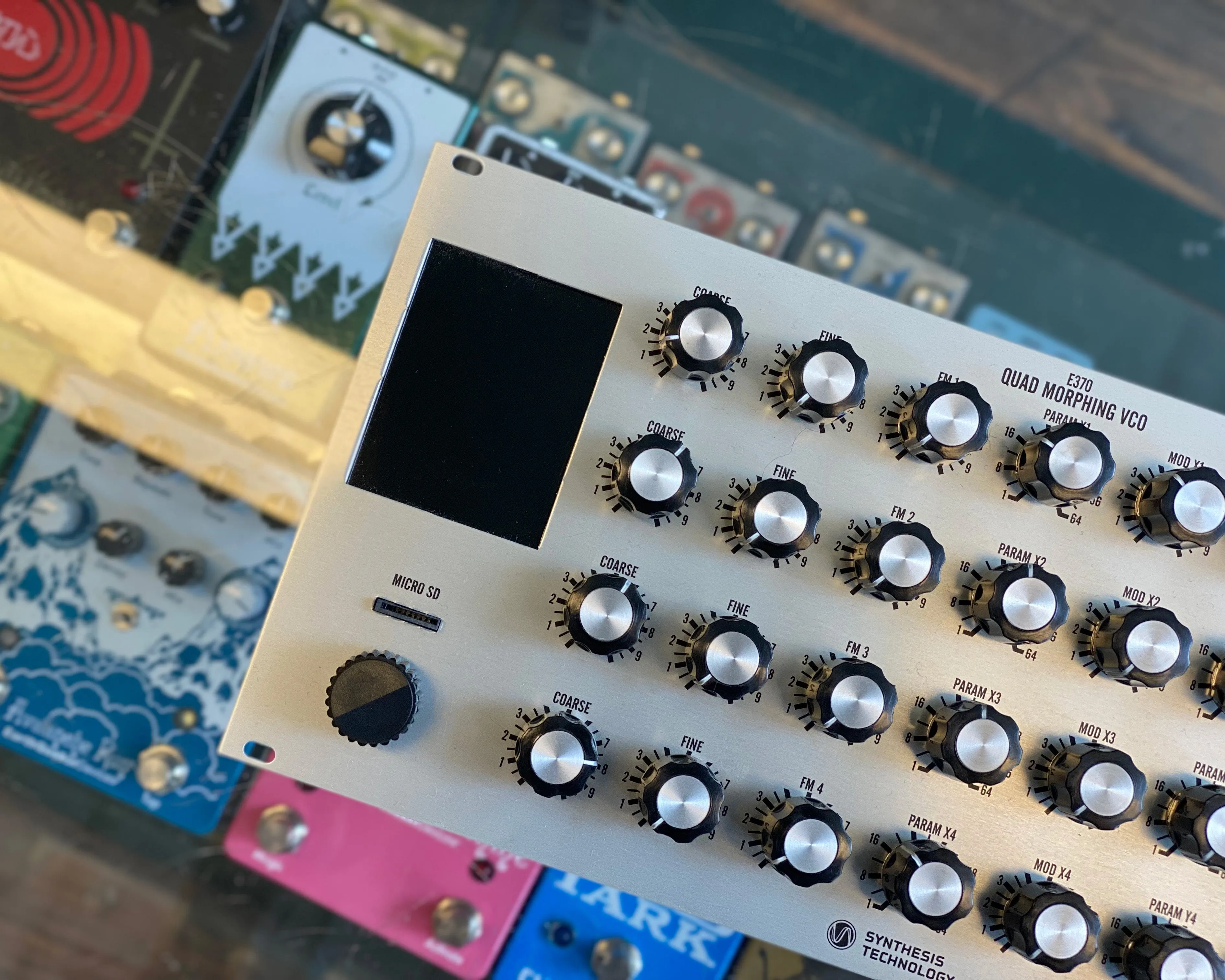

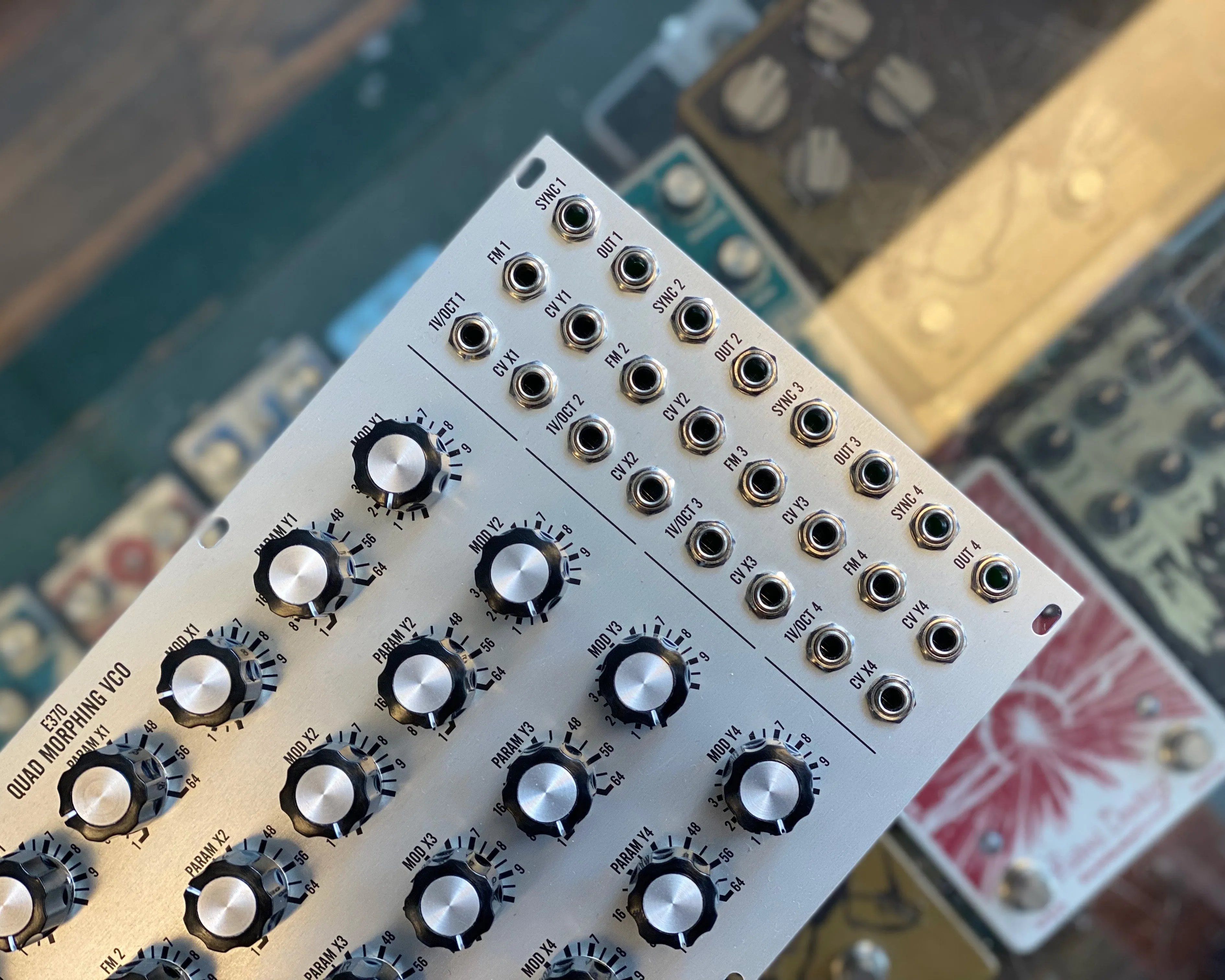

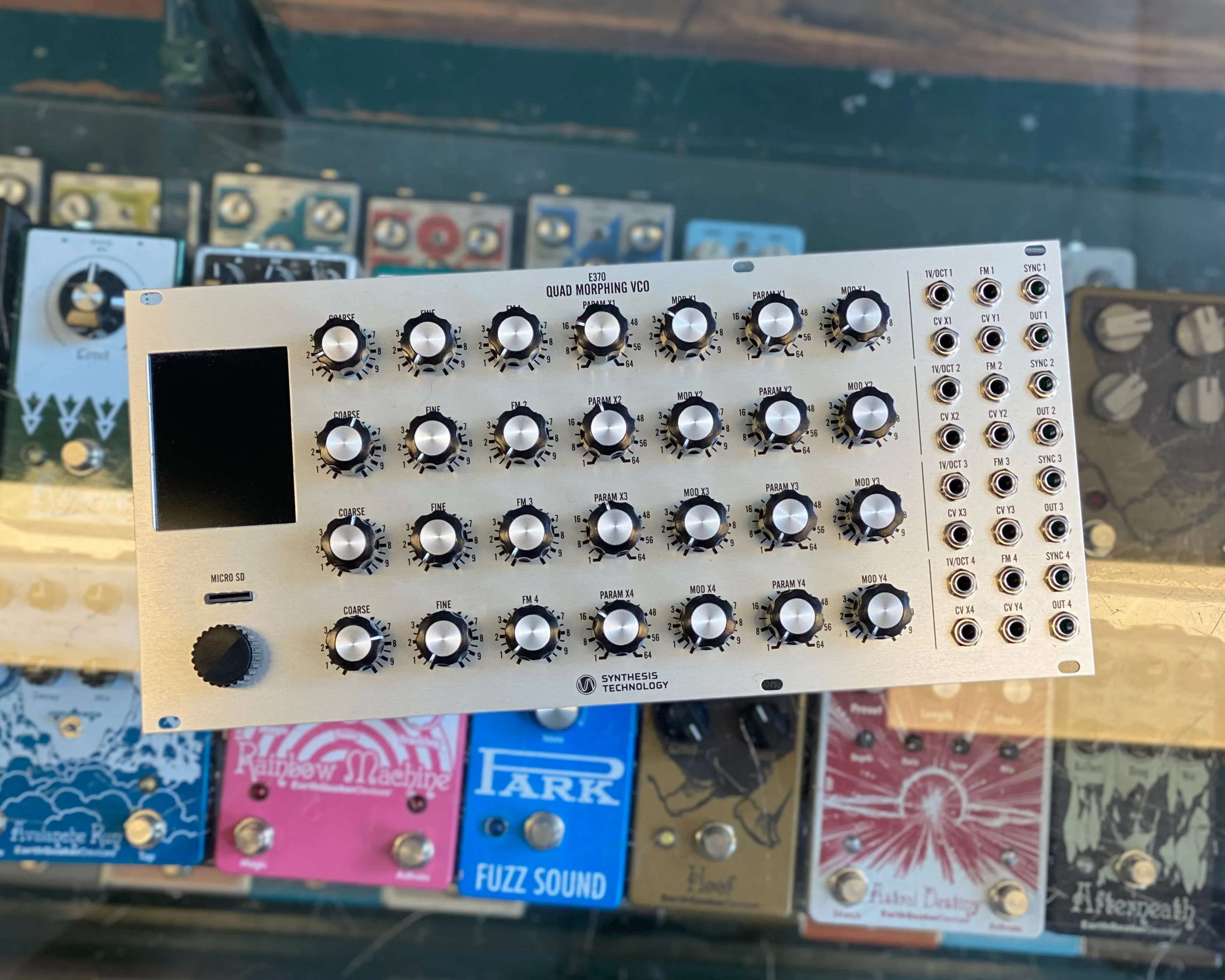

The Synthesis Technology E370 (54HP) boasts four VCOs that can be organized in a variety of configurations, including unison, dual pairs, and individually.
Combined, E370’s VCOs can be used to create powerful chords from a single cv source. Its Mod inputs are assigned to scales, progressions, intervals, and more. All of this plus thru-zero modulation capabilities reinforce the E370s remarkable reputation.

FEATURES:

• Quad multimode oscillator with a vast array of sonic options
• Dedicated Coarse/Fine tuning controls, FM, and Mod A/B for each oscillator
• Sync input for each oscillator
• Auto-calibration, no trimmers required!
• E340 Sine
• E340 Saw E340 Spreading
• E340 Chaos/Chaos BW
• LFO Mode
• Any of a VCO’s 64 wavetables can be utilized in a “Cloud” texture, a la SynthTech's E344 Cloud Generator
• E350 Phase Mode
• E350 Glitch Mode
• 2-OP FM Mode
• 64 wavetables available at any time
• Chords may be generated from a single CV source
• Sample rate: 16-bit/96kHz
• 2.4” TFT display with only “shallow menu diving”
• Micro-SD slot accepts cards of up to 16GB, using standard FAT system
• Custom wavetables can be created using the free WaveEditor program (including support for sample import for making wavetables from audio files)

Includes original box and manual.

Product Specs

• Item Number: 26855
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: United States
• MPN: 26855
• Modular Grid: Eurorack
• Dimensions*: 54 HP 42 mm deep
• Power*: 155 mA 12V 40 mA -12V 0 mA 5V

* User contributed details
