Product Details
＋

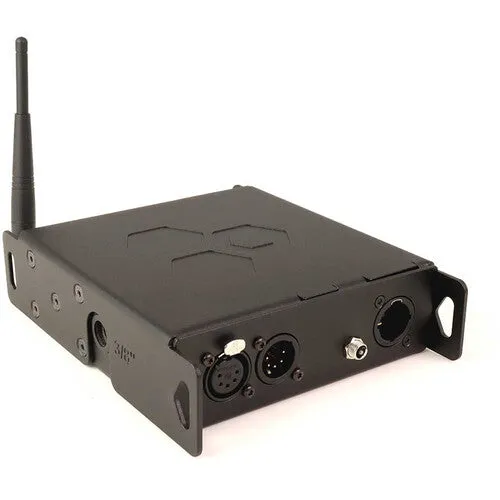

The LumenRadio Luna is a starting-point transceiver featuring LumenRadio CRMX technology for wireless DMX. It is capable of transmitting or receiving one universe of DMX. By using the CRMX Toolbox App, it is possible to configure all settings of the Luna over built-in Bluetooth. The same interface can also be used to transmit DMX data directly from supported lighting control apps without the need for any additional hardware. The enhanced radio design of the Luna allows for long-range transmissions up to 3280'.
Features
- 5-pin XLR port for DMX
- Supported Protocols: DMX/RDM (in RX mode), CRMX, W-DMX G3 / G4s, Bluetooth 5.0
- Radio Module: TimoTwo
- 5ms latency
- 128-bit encryption
- Forward error correction
- RP-TNC antenna connector
Specifications
General
| Inputs/Outputs | 1 x XLR 5-Pin Female 1 xDC Barrel 1 xTerminal powerCON |
| Latency | 5 ms |
| Wireless Range | 3280.8' / 1000 m |
| Frequency | 2.4 GHz |
Power
| Power Source | AC Adapter |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 10 to 20 VDC |
Physical
| Material of Construction | Aluminum |
| Dimensions | 7.5 x 5.5 x 1.7" / 19.0 x 14.0 x 4.4 cm |
Packaging Info
| Package Weight | 2.26 lb |
| Box Dimensions (LxWxH) | 13.8 x 10 x 2.3" |
