Product Details
＋

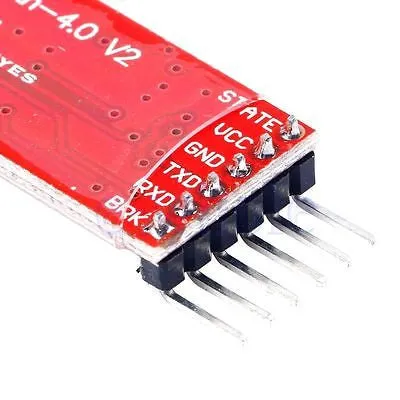

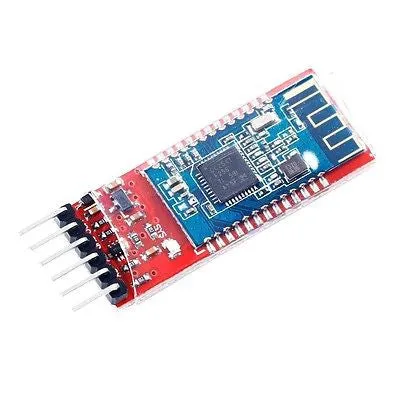

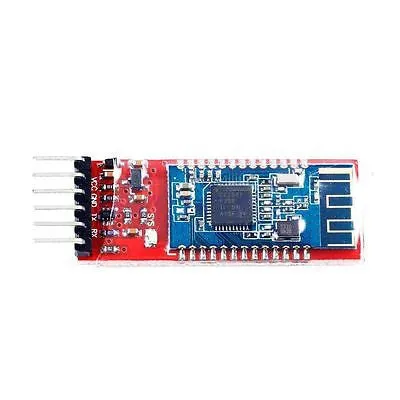

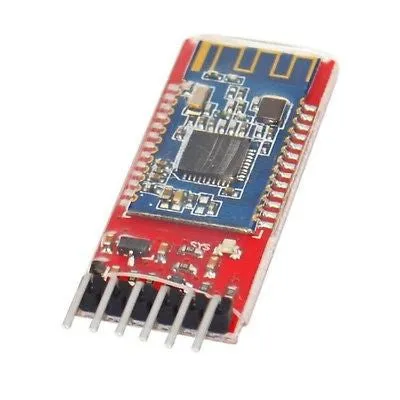

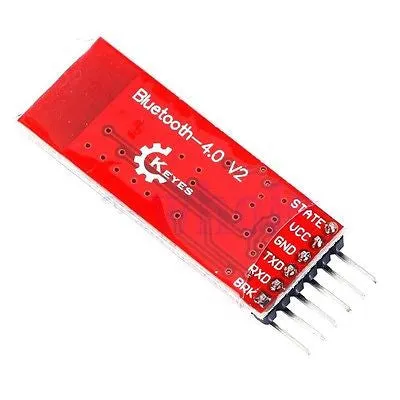

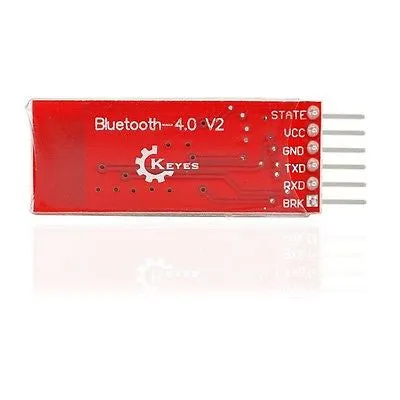

Bluetooth 4.0 V2 Port Module with Logic Level Conversion Anti-reverse circuit
Features:
100% Brand New and High Quality. Carries built-in logic level conversion circuit, so there is no need to convent 5V level to 3.3V level by external operation. Power input port carries anti-reverse circuit to avoid accidental reverse connection of power supply, thus preventing module from being burnt down. Supoort IOS system. Specification： Bluetooth protocol: Bluetooth Specification V4.0 BLE No byte limit in serial port Transceiving In open environment, realize 100m ultra-distance communication with iphone4s USB protocol: USB V2.0 Working frequency: 2.4GHz ISM band Modulation method: GFSK(Gaussian Frequency Shift Keying) Transmission power: -23dbm, -6dbm, 0dbm, 6dbm, can be modified by AT command Sensitivity: ≤-84dBm at 0.1% BER Transmission rate: Asynchronous: 6K bytes Synchronous: 6k Bytes Security feature: Authentication and encryption Supporting service: Central & Peripheral UUID FFE0, FFE1 Power consumption: Auto sleep mode, stand by current 400uA~800uA, 8.5mA during transmission Power supply: 5V DC Working temperature: –5 ~ 65 Centigrade Weight: 5g / pc
Package Included: 1 x Bluetooth 4.0 V2 Module
Raspberry Pi is a Trademark of the Raspberry Pi Foundation.
Product ID: EP00370
