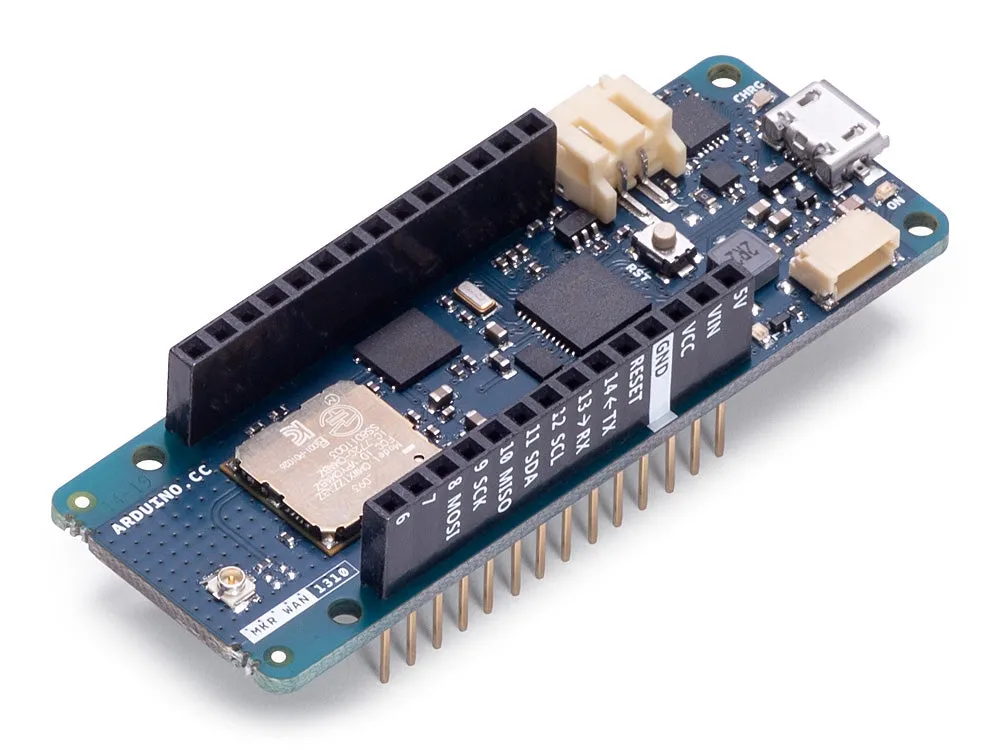

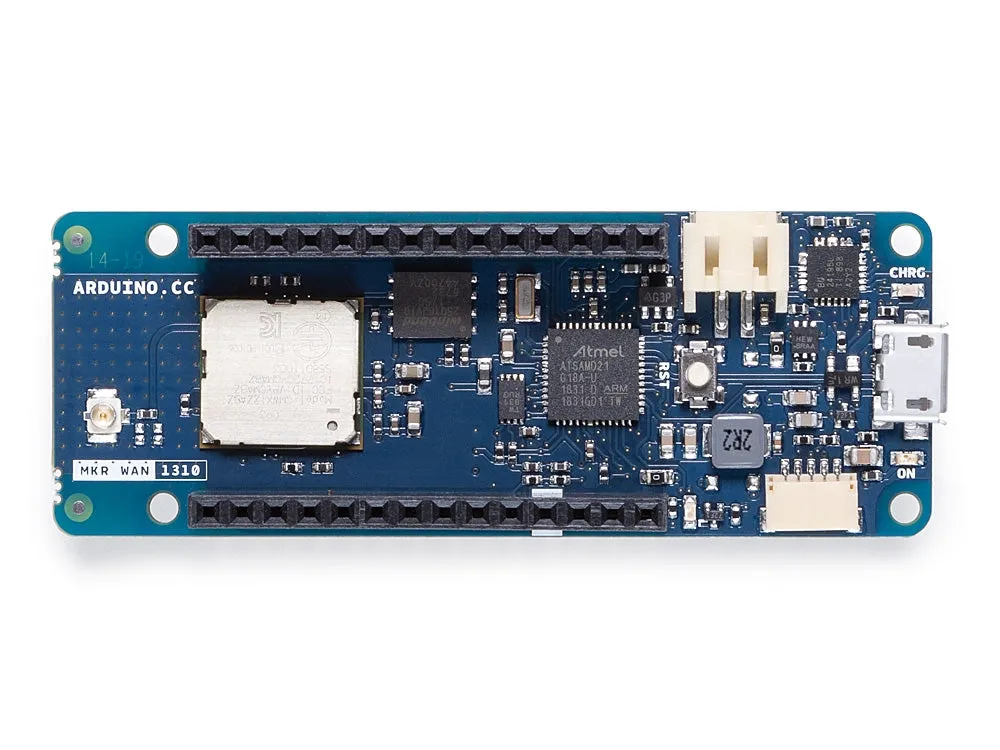

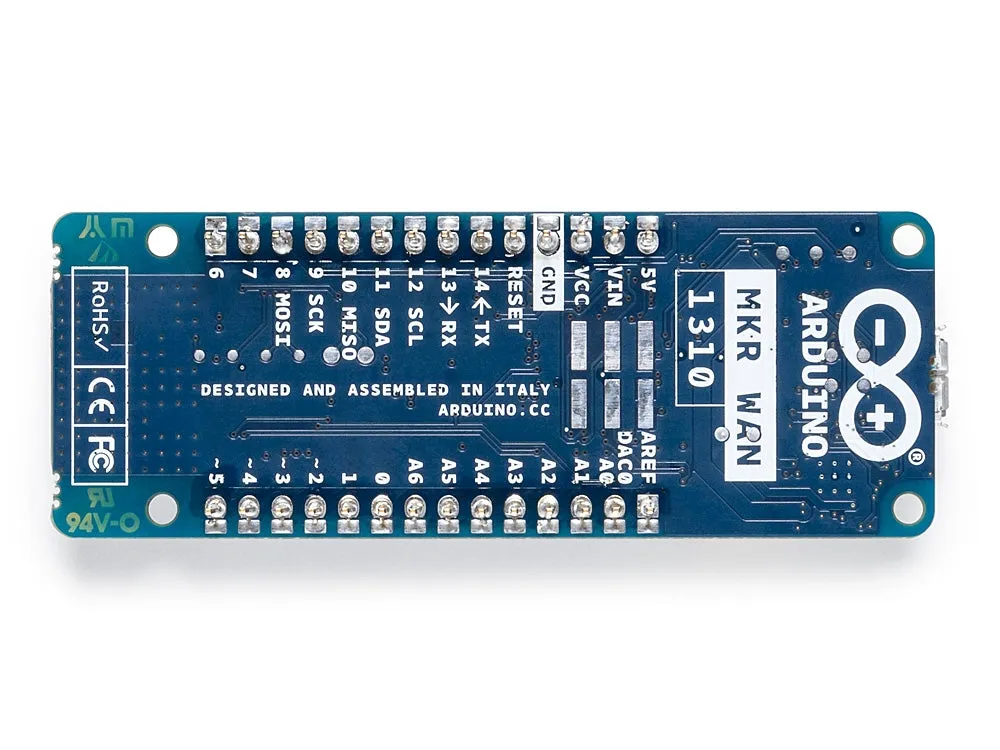

Name: Arduino MKR WAN 1310
SKU: 1835193

Product Details ＋

Better and More Efficient

The MKR WAN 1310, brings in a series of improvements when compared to its predecessor, the . While still based on the Microchip® low power processor, the Murata CMWX1ZZABZ LoRa® module, and the MKR family’s characteristic crypto chip (the ECC508), the MKR WAN 1310 includes a new battery charger, a 2MByte SPI Flash, and improved control of the board’s power consumption.

Improved Battery Power

The latest modifications have considerably improved the battery life on the MKR WAN 1310. When properly configured, the power consumption is now as low as 104uA! It is also possible to use the USB port to supply power (5V) to the board; run the board with or without batteries - the choice is yours.

On-board Storage

Data logging and other OTA (Over The Air) functions are now possible since the inclusion of the on board 2MByte Flash. This new exciting feature will let you transfer configuration files from the infrastructure onto the board, create your own scripting commands, or simply store data locally to send it whenever the connectivity is best. Whilst the MKR WAN 1310’s crypto chip adds further security by storing credentials & certificates in the embedded secure element.

These features make it the perfect IoT node and building block for low-power wide-area IoT devices.

Related Boards

If you are still deciding about the right wireless protocol for your solution, Arduino's MKR family has some alternatives to offer:

: for your EU solutions on Sigfox infrastructure. Visit its product page .
: when looking at global coverage, GSM / 3G is the world's most extended network. Visit its product page . We also provide you with a with a global data plan in case you need it.
: if your solution is designed around Narrowband IoT. Read more about it .

Getting Started

The section contains all the information you need to configure your board, use the Arduino Software (IDE), and start tinkering with coding and electronics.

Arduino IoT Cloud Compatible

Use your MKR board on Arduino's IoT Cloud, a simple and fast way to ensure secure communication for all of your connected Things.

*The following boards connect to the Arduino IoT Cloud via , a LoRaWAN® Network Server connected to thousands of public LoRa® gateways.

Need Help?

Check the Arduino Forum for questions about the , or how to make your own . Need any help with your board please get in touch with the official Arduino User Support as explained in our page.
