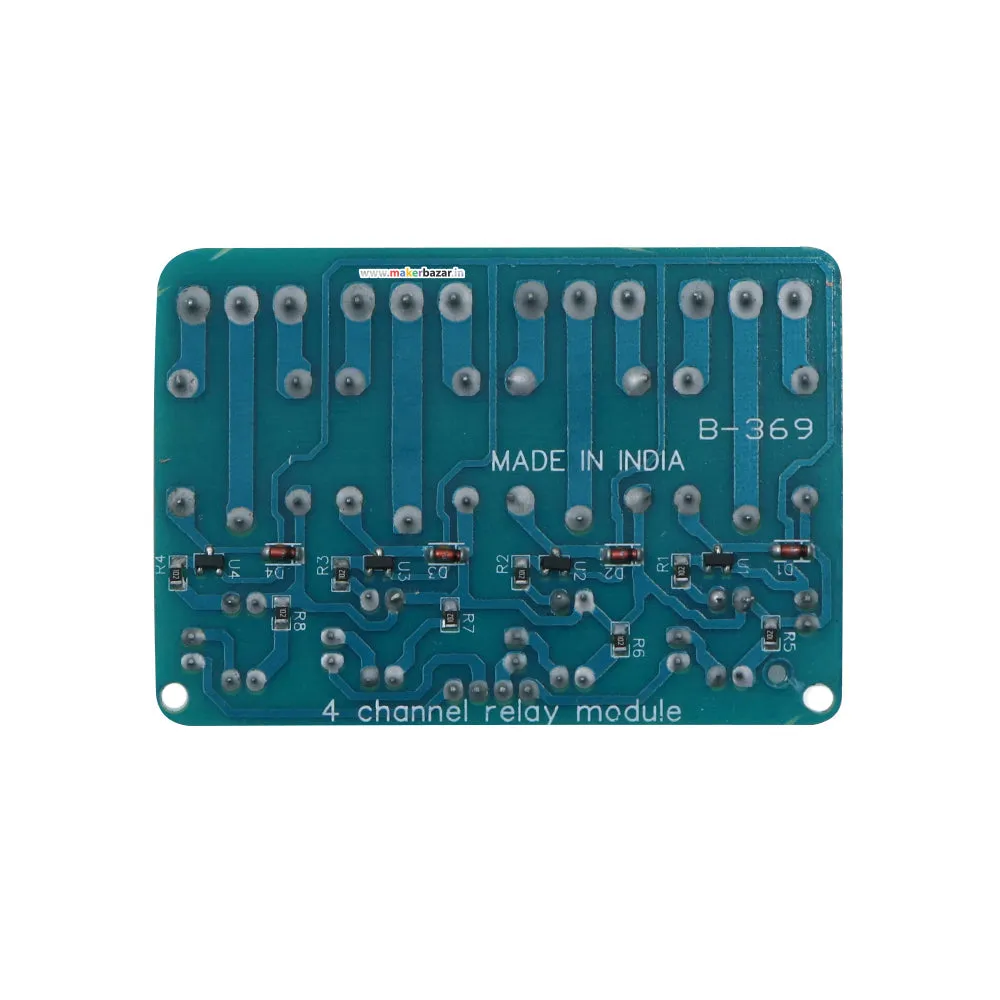

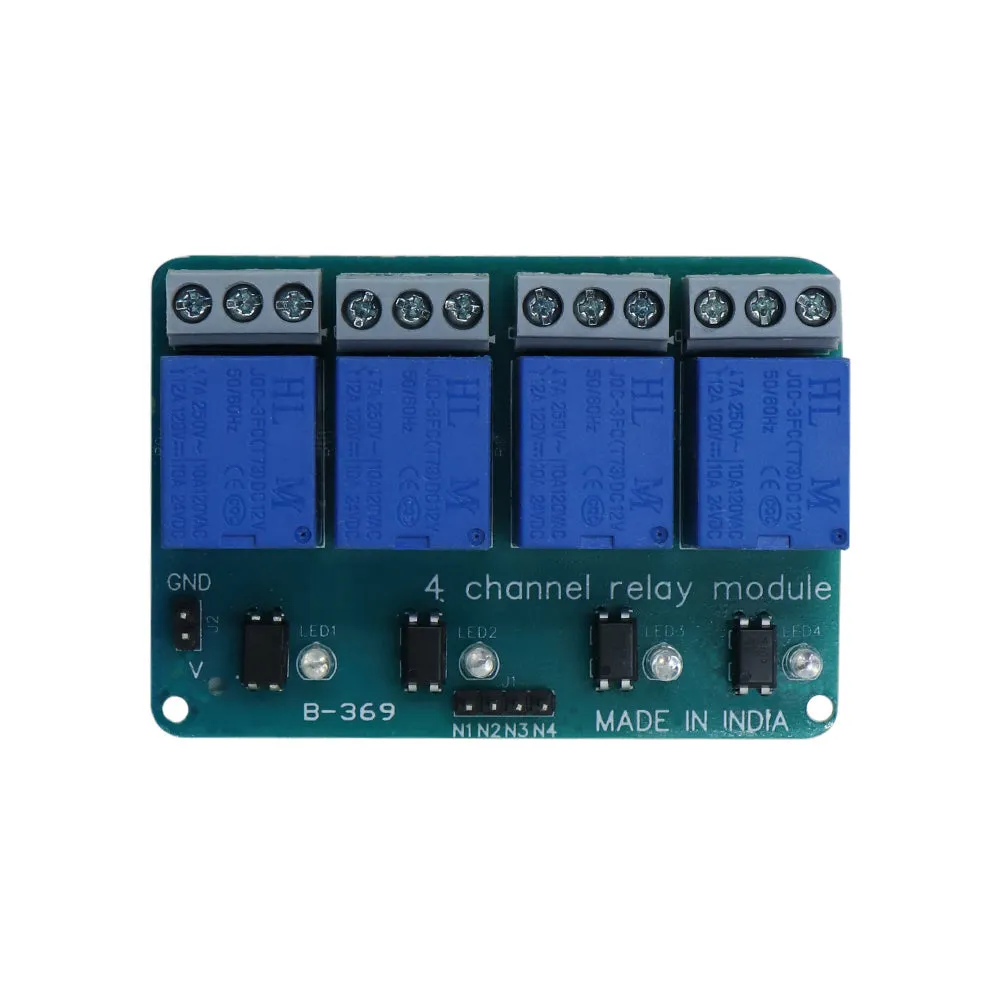

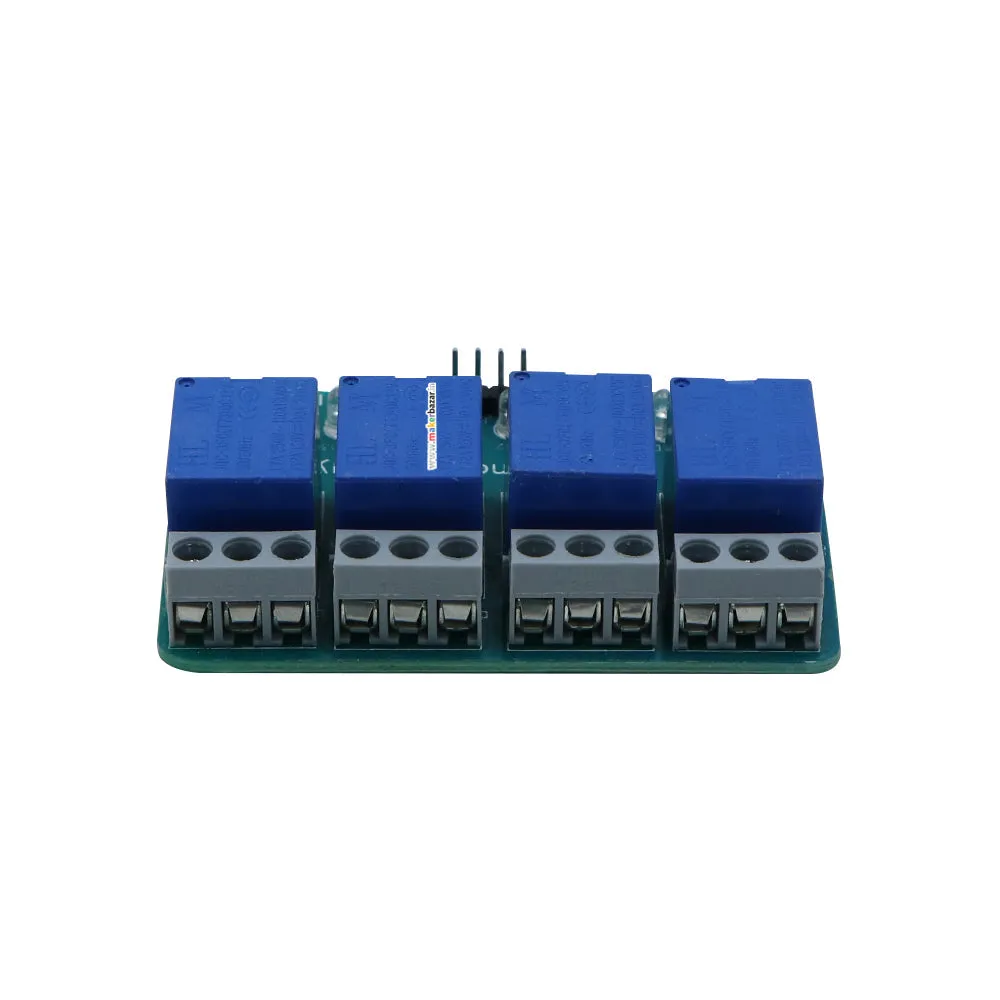

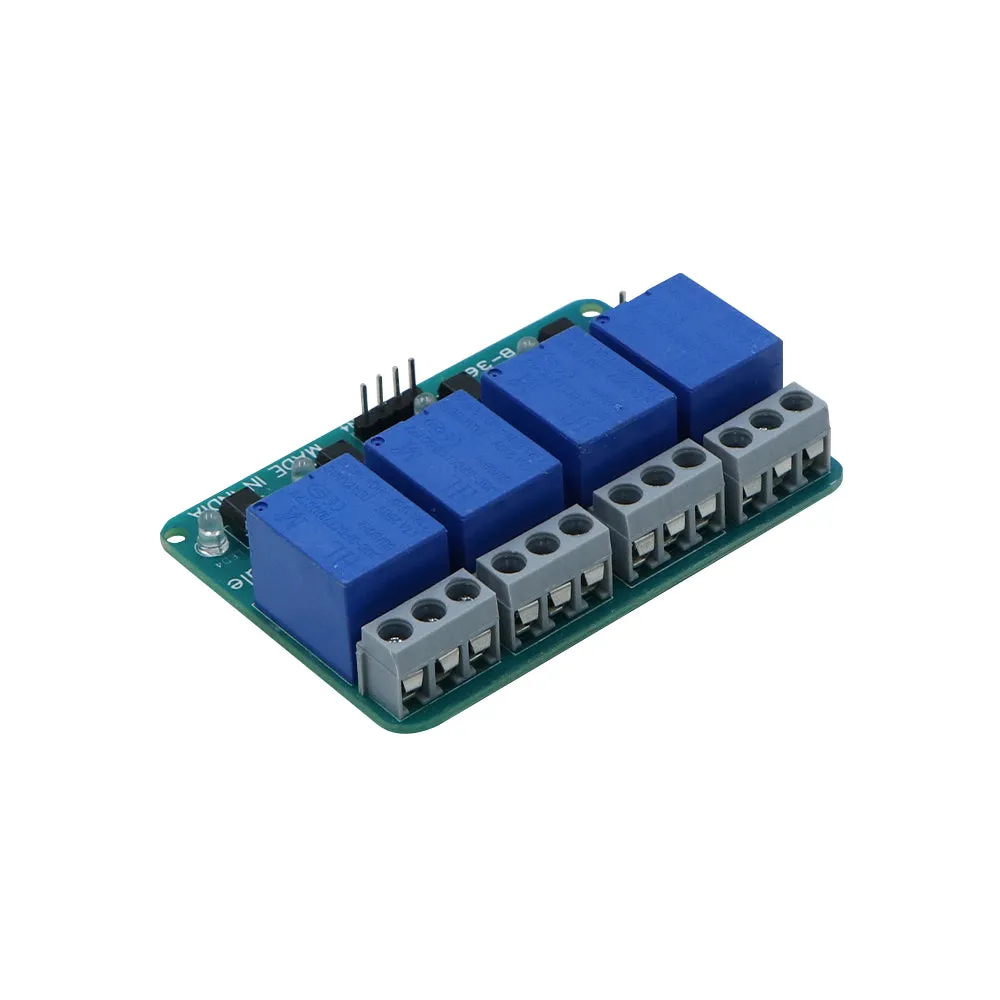

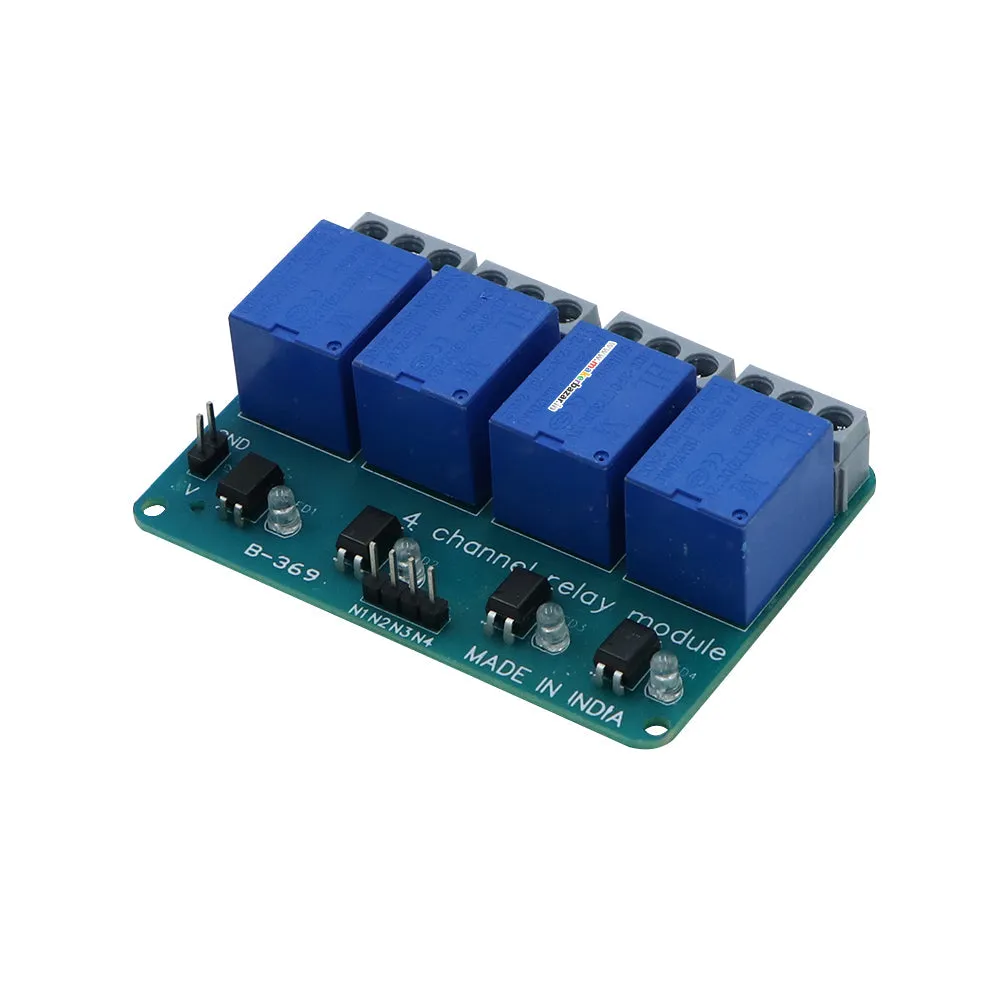

Four Channel Relay Board [5 Volt]

This 4 channel relay board operates on 5V. Can be used directly to control 240V power appliances from most of the microcontrollers and other control system circuits. The board has a high-quality relay, which can operate a maximum of 10A @ 120V or 7A @ 240V AC, 7A/24V DC. Relay has three connections - Common - C, Normally Open-NO, Normally Closed-NC brought out to 3 pin screw terminals which makes it easy to make and remove connections. The board has a power indication and a relay status LED to ease debugging. Power input and relay control signals are brought to header pins on the board.

• High-quality relay used
• 4-Channel Relay interface board
• Equipped with high-current relay : 15A @ 125V or 10A @ 250V A
• Standard interface that can be controlled directly by a microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM)
